CycloVent Snail – Radial Fans

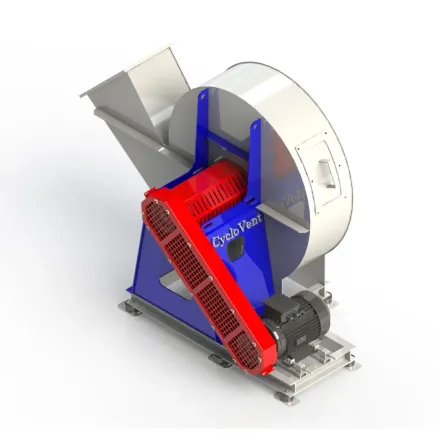

SuperStorm High-Pressure CycloVent Snail Fans

The CycloVent SuperStorm Series are powerful snail – radial fans designed for applications requiring high pressure in industrial environments. They are specifically manufactured for processes such as combustion burners and waste collection machines. They operate efficiently by providing high speed and pressure while also ensuring energy efficiency.

SuperStorm High-Pressure Snail – Radial Fans

Capacity information and general dimensions are provided in the ‘Documents’ section.

High-Pressure Performance

CycloVent SuperStorm Series fans provide excellent performance in applications requiring high pressure in industrial environments. With specific speeds of up to 48, fans in this series are especially ideal for processes such as high-pressure air production.

Durable Structure

SuperStorm Series fans have a robust and durable structure. They are designed to withstand harsh conditions and provide long-lasting performance.

High Efficiency

Thanks to its special design, CycloVent SuperStorm fans operate with high efficiency. Even in applications requiring high pressure, they provide energy savings and minimize operating costs.

Easy Installation and Maintenance

SuperStorm Series fans stand out for their easy installation and maintenance features. Their modular structure allows for quick assembly and they require regular maintenance.

Wide Range of Applications

CycloVent SuperStorm fans have a wide range of applications in industrial facilities. They can be used in various processes requiring high pressure and can be adapted to different industrial needs with customizable design options.

Powerful Performance

SuperStorm Series fans deliver powerful and consistent performance. They provide excellent performance even under heavy workloads.

Flexible Use

CycloVent SuperStorm fans offer flexible use. They are designed to be suitable for various industrial applications and have a wide range of uses.

High Durability

SuperStorm Series fans have a durable and long-lasting structure. They are designed to withstand the harsh conditions of industrial environments and deliver reliable performance.

By Flow Rate: CycloVent SuperStorm Series CycloVent Snail – Radial Fans

High-Pressure SuperStorm Series Below 5000 m³/h

SuperStorm 219

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
1000 – 1510	1690 – 2540	1,5	CV 35 395 H
1840 -2770	1660 – 2770	3	CV 48 443 H
2190 – 3290	2160 – 3260	4	CV 43 442 H

SuperStorm 273

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
1840- 2770	1660 – 2502	3	CV 48 443 H
1940- 2920	2620 – 3940	4	CV 35 493 H

SuperStorm 323

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
3210 – 4830	3670 – 5520	11	CV 35 583 H

High-Pressure SuperStorm Series Between 5000 m³/h and 10000 m³/h

SuperStorm 219

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
3760 – 5650	5200 – 7810	15	CV 29 688 H

SuperStorm 273

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
4240 – 6370	3360 – 5060	11	CV 43 550 H
5070 – 7620	6300 – 9460	30	CV 29 768 H

SuperStorm 323

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
5910 – 8880	3620 – 5441	15	CV 48 653 H

SuperStorm 355

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
4270 – 6420	4440 – 6670	15	CV 35 641 H

SuperStorm 457

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
4560 – 6840	1840 – 2760	7,5	CV 35 825 H

SuperStorm 508

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
6260 – 9400	2270 – 3420	11	CV 35 917 H

High-Pressure SuperStorm Series Between 10000 m³/h and 20000 m³/h

SuperStorm 323

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
7020 – 10550	4710 – 7080	22	CV 43 651 H
8410 – 12620	8820 – 13240	55	CV 29 908 H

SuperStorm 355

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
9330 – 14000	5690 – 8550	22	CV 48 716 H
7850 – 11790	4380 – 6572	30	CV 48 718 H
42960 – 17040	11020 – 16550	90	CV 29 998 H

SuperStorm 457

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
8370 – 12570	1810 – 2723	11	CV 48 924 M
10900 – 15140	2420 – 3640	18,5	CV 43 921 M
11910 – 17870	4410 – 6630	37	CV 29 1285 M

SuperStorm 508

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
11050 – 17270	2240 – 3365	18,5	CV 48 1027 M

SuperStorm 610

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
10840 – 16270	3270 – 4920	30	CV 35 1101 M

SuperStorm 711

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
11540 – 17330	2010 – 3030	18,5	CV 35 1284 S

High-Pressure SuperStorm Series Between 20000 m³/h and 30000 m³/h

SuperStorm 508

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
13860 – 20800	2990 – 4500	30	CV 43 1024 M
16360 – 24550	5450 – 8190	75	CV 29 1429 M

SuperStorm 800

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
16440 – 24680	2540 – 3830	30	CV 35 1444 S

High-Pressure SuperStorm Series Between 30000 m³/h and 40000 m³/h

SuperStorm 610

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
22160 – 33250	3470 – 5208	55	CV 48 1278 M
24000 – 36000	4320 – 6480	75	CV 43 1230 M

SuperStorm 711

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
25200 – 37820	2580 – 3880	45	CV 43 1434 S
21210 – 31830	1980 – 2980	30	CV 48 1438 S

High-Pressure SuperStorm Series Above 40000 m³/h

SuperStorm 610

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
28320 – 42500	7860 – 11800	160	CV 29 1716 M

SuperStorm 711

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
30160 – 45250	4830 – 7250	110	CV 29 2000 S

SuperStorm 800

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
30220 – 45340	2510 – 3773	55	CV 43 1618 S
35900 – 53870	3260 – 4910	75	CV 43 1613 S
42960 – 64450	6110 – 9180	180	CV 29 2250 S

By Motor Power: CycloVent SuperStorm Series CycloVent Snail – Radial Fans

High-Pressure SuperStorm Series 4 kW and Below

SuperStorm 219

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
1000 – 1510	1690 – 2540	1,5	CV 35 395 H
1840 -2770	1660 – 2502	3	CV 48 443 H
2190 – 3290	2160 – 3260	4	CV 43 442 H

SuperStorm 273

Flow Range (m³/h)	“Pressure Range (Pa)	Motor (kW)	Model
1840- 2770	1660 – 2502	3	CV 48 443 H
1940- 2920	2620 – 3940	4	CV 35 493 H

High-Pressure SuperStorm Series Between 5.5 kW and 11 kW

SuperStorm 273

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
4240 – 6370	3360 – 5060	11	CV 45 550 H

SuperStorm 323

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
3210 – 4830	3670 – 5520	11	CV 35 323 H

SuperStorm 457

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
4560 – 6840	1840 – 2760	7,5	CV 35 825 H
8370 – 12570	1810 – 2723	11	CV 48 924 H

SuperStorm 508

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
6260 – 9400	2270 – 3420	11	CV 35 917 H

High-Pressure SuperStorm Series Between 15 kW and 22 kW

SuperStorm 323

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
5910 – 8880	3620 – 5441	15	CV 48 653 H
7020 – 10550	4710 – 7080	22	CV 48 651 H

SuperStorm 355

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
4270 – 6420	4440 – 6670	15	CV 35 641 H
9330 – 14000	5690 – 8550	22	CV 43 716 H

SuperStorm 457

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
10090 – 15140	2420 – 3640	18,5	CV 43 921 H

SuperStorm 508

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
11500 – 17270	2240 – 3365	18,5	CV 48 1027 M

SuperStorm 711

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
11540 – 17330	– 3030	18,5	CV 35 1284 M

High-Pressure SuperStorm Series Between 30 kW and 45 kW

SuperStorm 273

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
5070 – 7620	6300 – 9460	30	CV 29 768 H

SuperStorm 355

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
7850 – 11790	4380 – 6572	30	CV 48 718 H

SuperStorm 457

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
11910 – 17870	4410 – 6630	37	CV 29 1285 M

SuperStorm 508

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
13860 – 20800	2990 – 4500	30	CV 43 1024 M

SuperStorm 610

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
10840 – 16270	3270 – 4920	30	CV 35 1101 M

SuperStorm 711

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
25200 – 37820	2580 – 3880	45	CV 43 1434 S
21210 – 31830	1980 – 2980	30	CV 48 1438 S

SuperStorm 800

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
16440 – 24680	2540 – 3830	30	CV 35 1444 S

High-Pressure SuperStorm Series Between 55 kW and 75 kW

SuperStorm 323

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
8410 – 12620	8820 – 13240	55	CV 29 908 H

SuperStorm 508

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
16360 – 24550	5450 – 8190	75	CV 29 1429 M

SuperStorm 610

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
22160 – 33250	3470 – 5208	55	CV 48 1278 M
24000 – 36000	4320 – 6480	75	CV 43 1230 M

SuperStorm 800

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
30220 – 45340	2510 – 3773	55	CV 48 1618 S
35900 – 53870	3260 – 4910	75	CV 43 1613 S

High-Pressure SuperStorm Series 90 kW and Above

SuperStorm 355

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
42960 – 17040	11020 – 16550	90	CV 29 998 H

SuperStorm 610

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
28320 – 42500	7860 – 11800	160	CV 29 1716 M

SuperStorm 711

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
30160 – 45250	4830 – 7250	110	CV 29 2000 S

SuperStorm 800

Flow Range (m³/h)	Pressure Range (Pa)	Motor (kW)	Model
42960 – 64450	6110 – 9180	180	CV 29 2250 S
