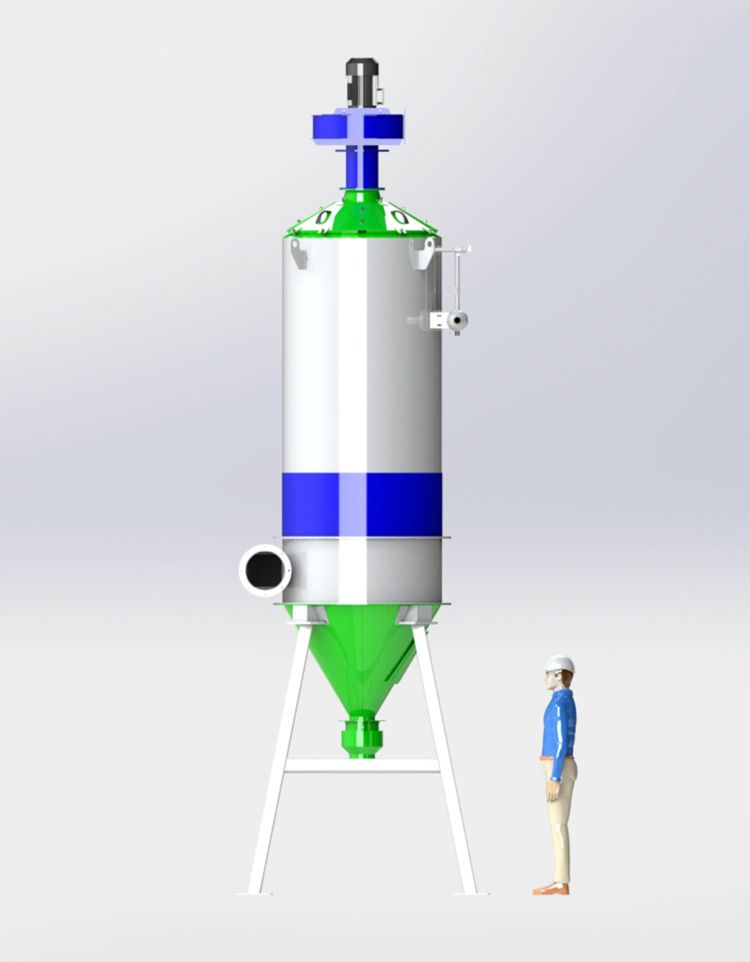

CycloJet Vortex 24

CycloJet Dust Collection Systems

Technical Specifications

  • Operates on the Jet Pulse principle,
  • Durable for continuous and long journeys,
  • Performs without loss of efficiency under high dust loads,
  • High humidity,
  • High temperatures,
  • Has a capacity range from 2,400 Nm³/hour to 3,840 Nm³/hour,
  • Due to its unique cyclonic structure, it directs nearly all particles larger than 45 microns to the collection cone without sending them to the filter elements,
  • Has a long bag life, and low energy consumption for compressed air and fan,
  • Features a user-friendly fully automatic automation panel,
  • Capacity information and general dimensions are provided in the ‘documents’ section.

Compact Bucket

H

5.850

CycloJet Series Dimension Table
A

2.000

CycloJet Series Measurement Table
B

2.000

CycloJet Series Size Table

Capacity Table (Nm³/hour)

Minimium
2400
Capacity Table (Nm³/hour)
Maximum
3.840
Capacity Table (Nm³/hour)

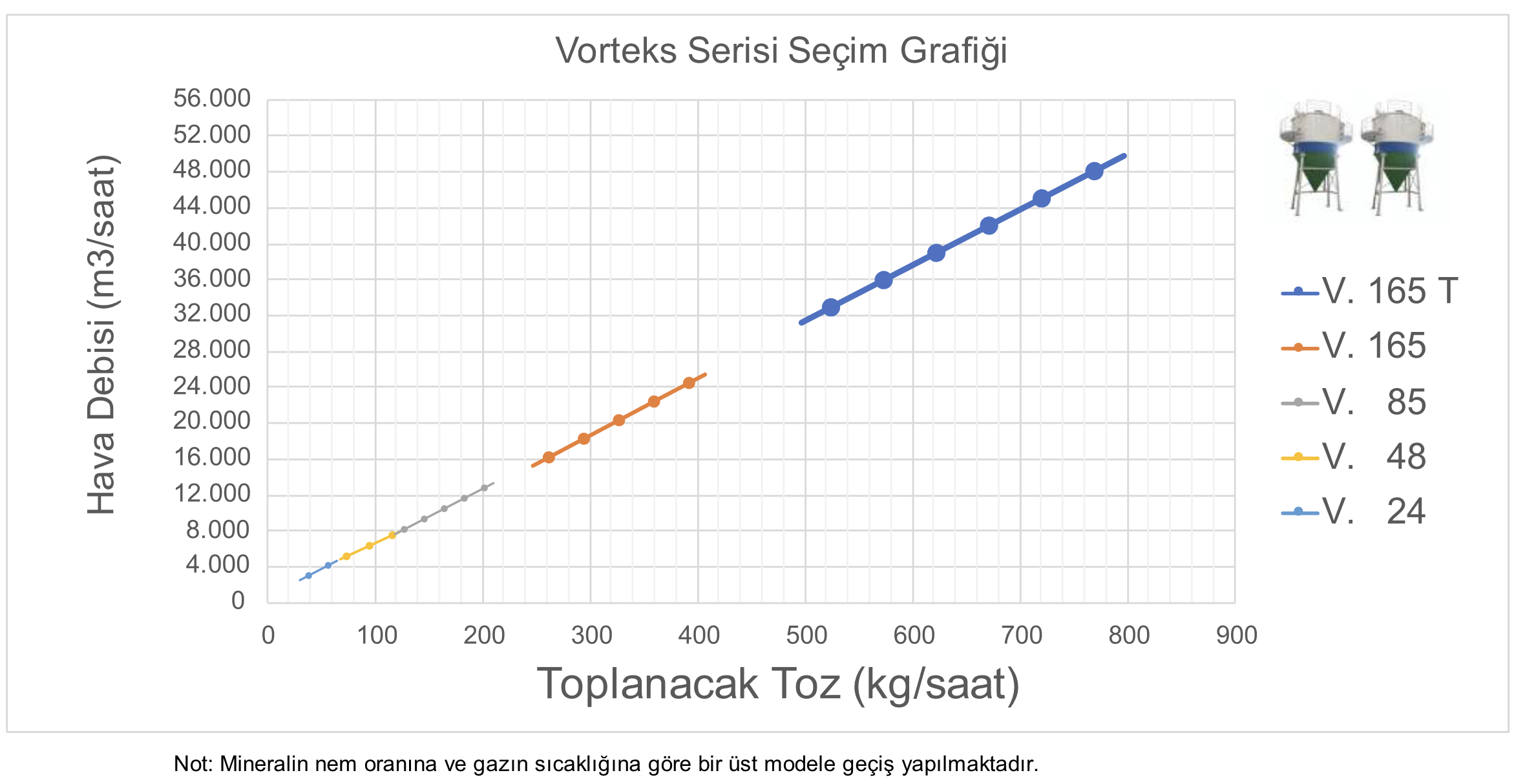

Vortex Series Selection Chart

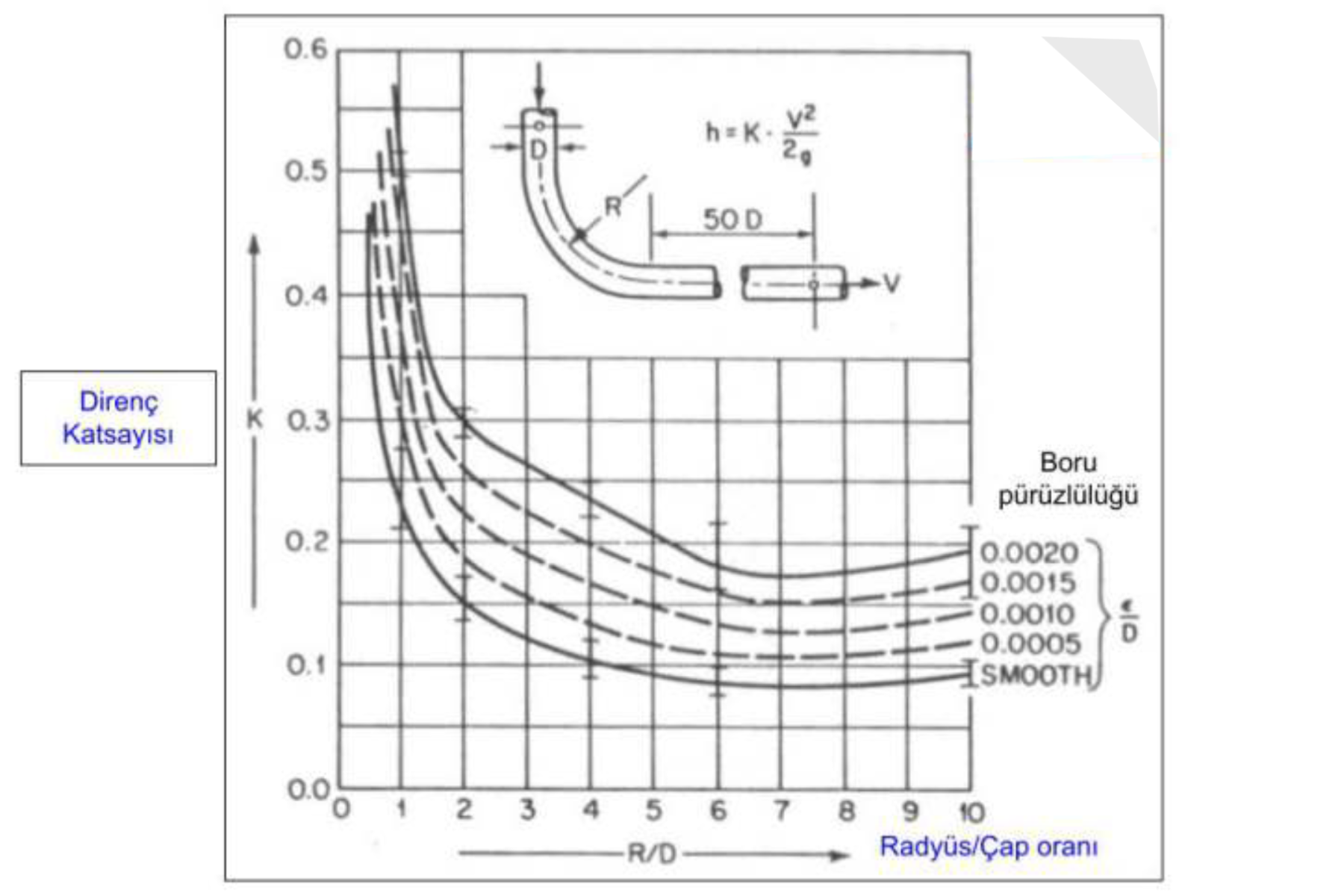

Dust Collection Ducts, Radius-Resistance Relationship

In dust collection systems, if your turn radius value is less than 6 times the pipe diameter, additional pressure loss and electricity consumption occur, fan capacity decreases, and system performance and energy efficiency are reduced.

Operating Notes
